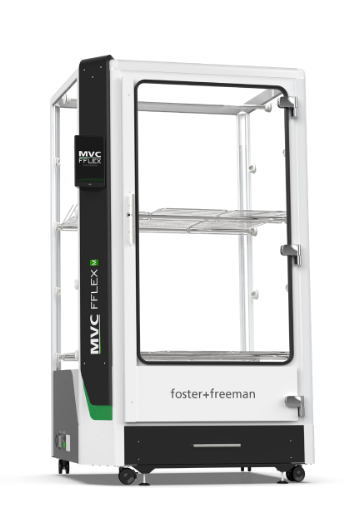

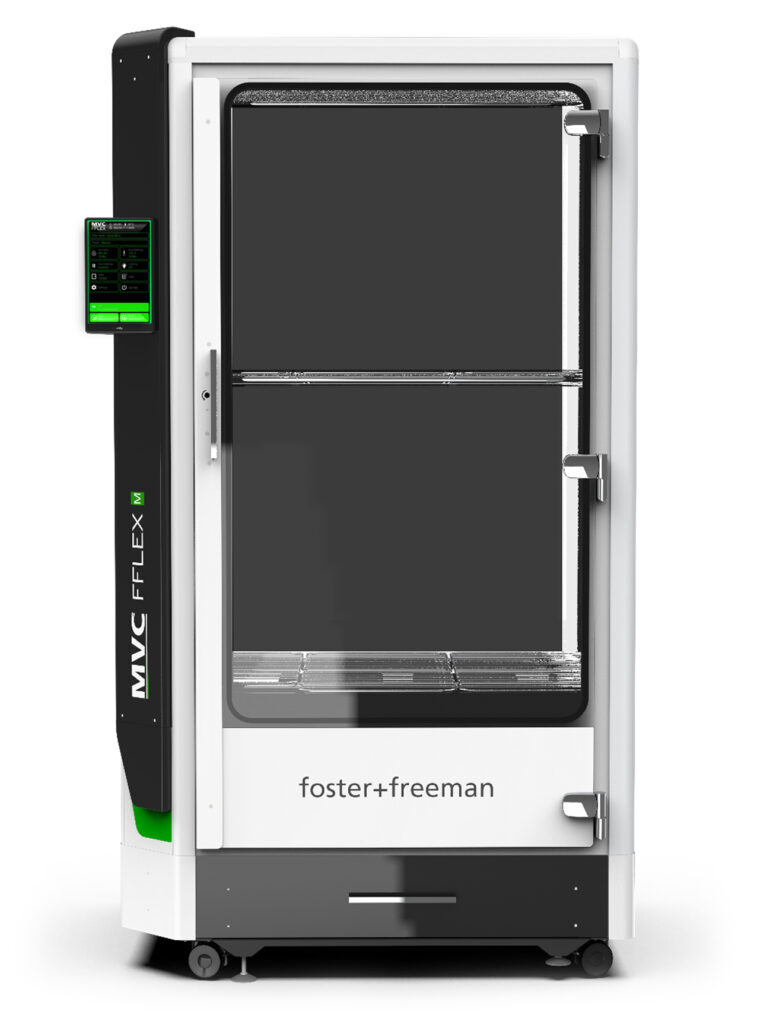

Foster + Freeman MVC®FFLEX M

Foster + Freeman MVC®FFLEX M

The Next Generation of Industry Standard Cyanoacrylate Fuming Cabinets. The Foster + Freeman MVC®FFLEX M builds on tried and trusted technology offering innovative new user-focussed features that will optimise results, increase laboratory efficiency, and provide complete end-to-end control of the fingermark development process.

Smart Process Management: Optimise the fuming process, using manual or semiautomated operations, to improve the development of feint fingermarks.

End-to-End Monitoring & Measurement: Monitor (in real-time) and record all fuming cycle parameters to validate the consistency, reliability, and quality of results.

Unrivalled Product Safety: All potential risks and hazards associated with cyanoacrylate fuming have been minimised, putting the safety of laboratory staff first.

Reduced Consumable Costs: Variable life activated carbon filter cassettes remove the ‘guess work’ and risk of sub-standard performance due to absorbed filters. Also helps to ensure maximum utility of each filter is achieved & capacity is not wasted.

  • Capacity: 835 litres
  • External: (H) 1780mm x (W) 1025mm x (D) 747mm
  • Internal: (H) 1284mm x (W) 956mm x (D) 709mm
  • Door Aperture: (H) 1163mm x (W) 650mm

Common Features:

Evidence Fuming:

  • Operating Modes: Manual and Automatic
  • Humidity Level: Variable from 60 to 90%
  • Humidity Accuracy: Includes 3x multi-point RH sensors
  • Temperature (Auto): Preset to 120C or 230C
  • Temperature (Manual): Variable from 100C to 230C
  • Glue/Fuming Agent: Suitable for use with all commercially available cyanoacrylate products.

End-User Safety:

Cabinet Status Indicators:

High-visibility status illumination

  • White = Active (fuming in process)
  • Amber = Non-critical warning
  • Red = Error
  • Green = Fuming cycle complete

Filter System:

Intelligent 2-stage filter cartridge

  • Dynamic filter saturation
  • High adsorption activated carbon
  • Variable lifetime

Data Logging:

Interface:

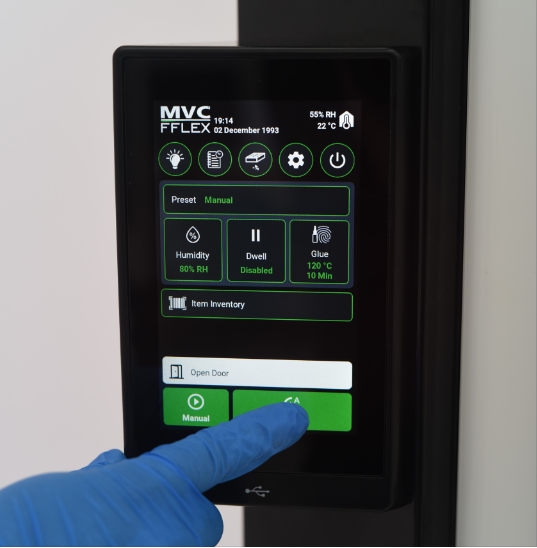

7” colour touchscreen display:

  • Full control of cabinet functions
  • Realtime process monitoring
  • Display usage and diagnostics

Record and store cabinet usage logs:

  • Unique log ID
  • Barcode entry
  • Process variables
  • User notes
Nem raktáron lévő termék, csak rendelésre elérhető!
Versions:
Item number: MVC-FFLEX-M

Please inquire about stock before ordering!
After placing the order, we will inform you about the expected delivery time and cost based on the stock!
